Washing

Cleaning with water power

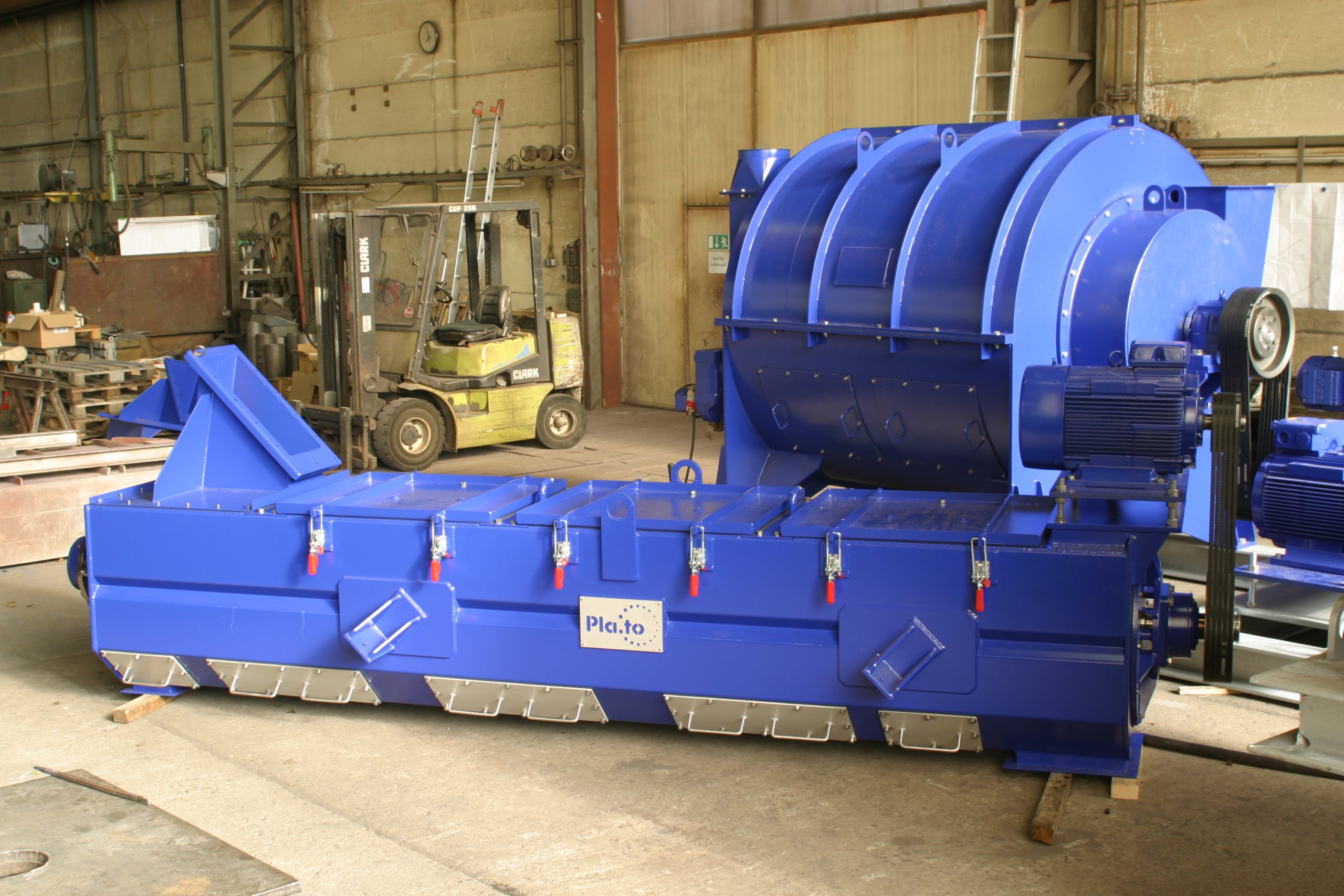

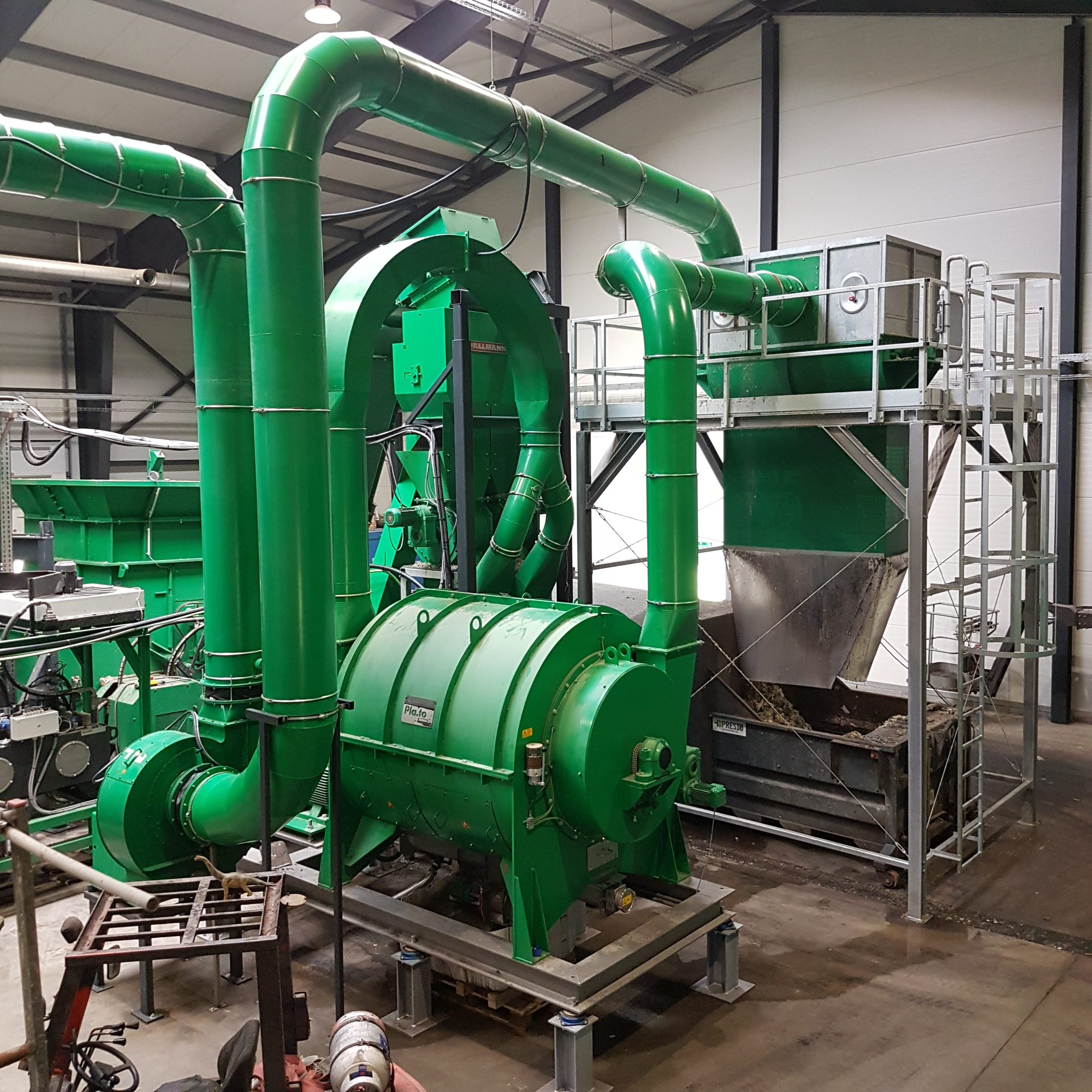

For stubborn stains we offer an ideal unit with the friction washer and the intensive washer. With friction and water the plastic waste is cleaned in two steps. The friction washer allows water and plastic waste to circulate, soaks the waste and dissolves dirt. In the intensive washer a thorough post-cleaning and mechanical dewatering takes place.

Friction and intensive washers – A perfect combination of complementary cleaning machines.

Pla.to
HydroPower Washing

New standards for cleaning

In the process of washing, we rely on a doubly strong solution: the friction and intensive washers make a strong team for thorough and continuous cleaning.

Frequently occurring contamination, such as mud and soil on agricultural films, paper labels from household and industrial films or food residues from post consumer plastics can be easily removed.

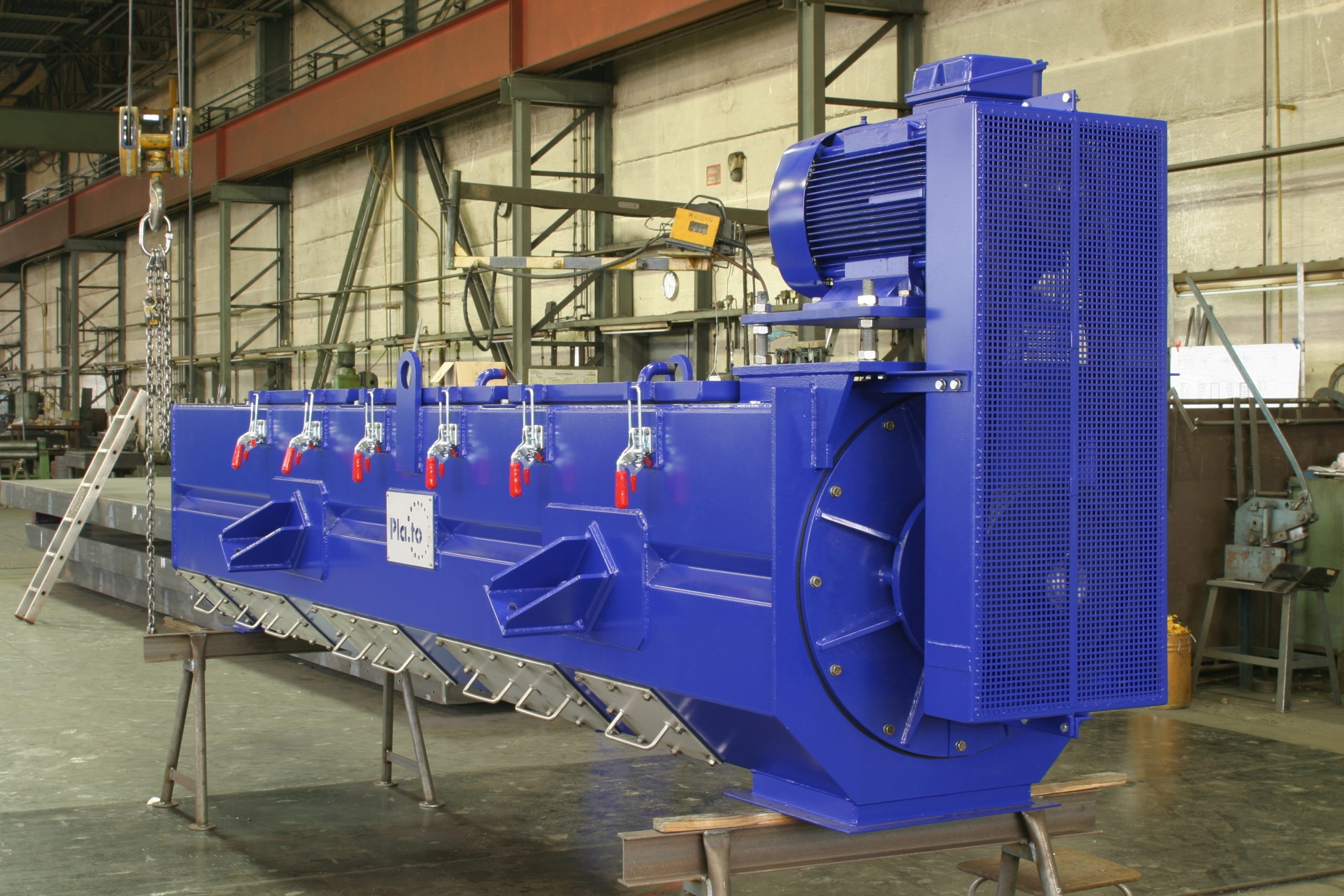

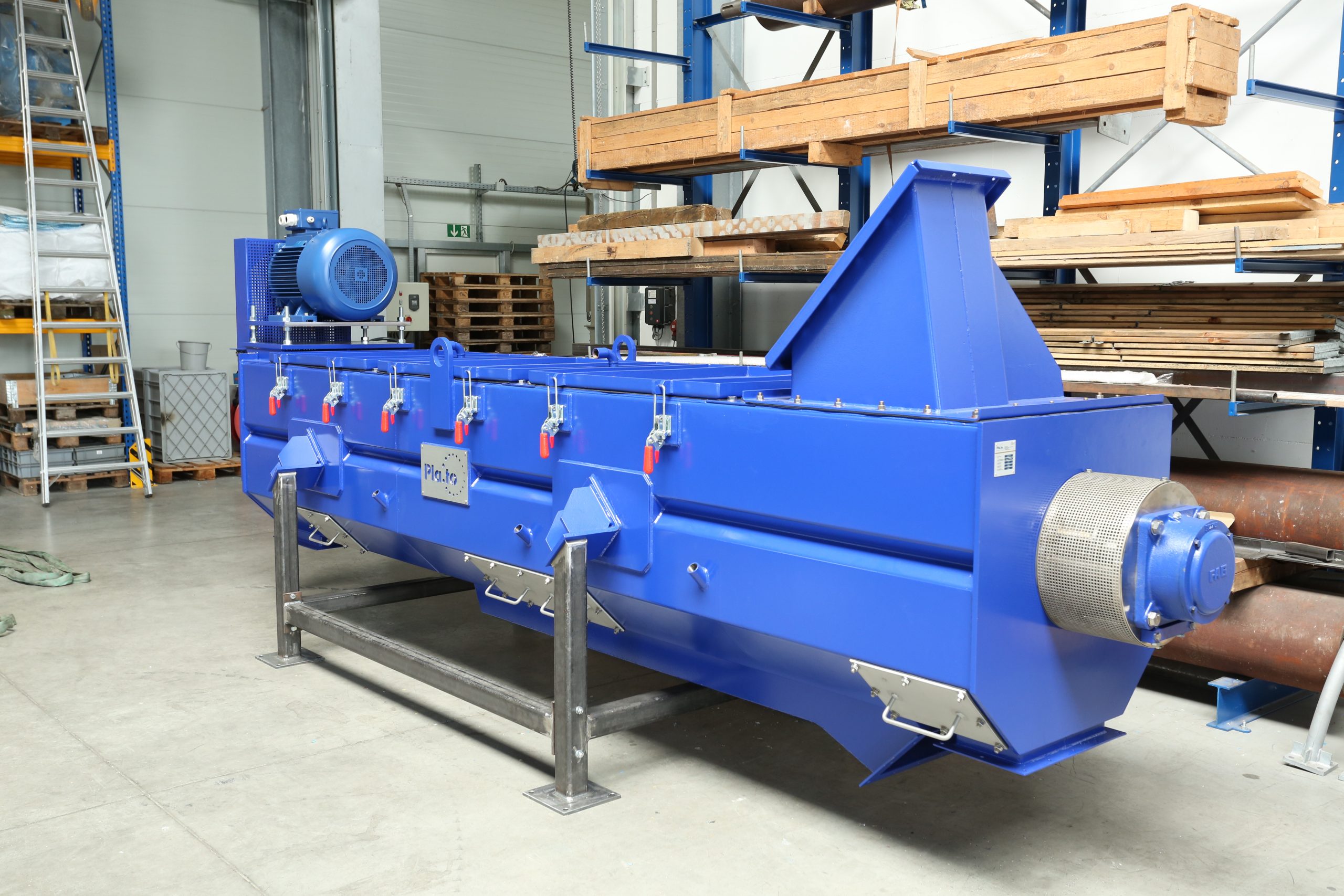

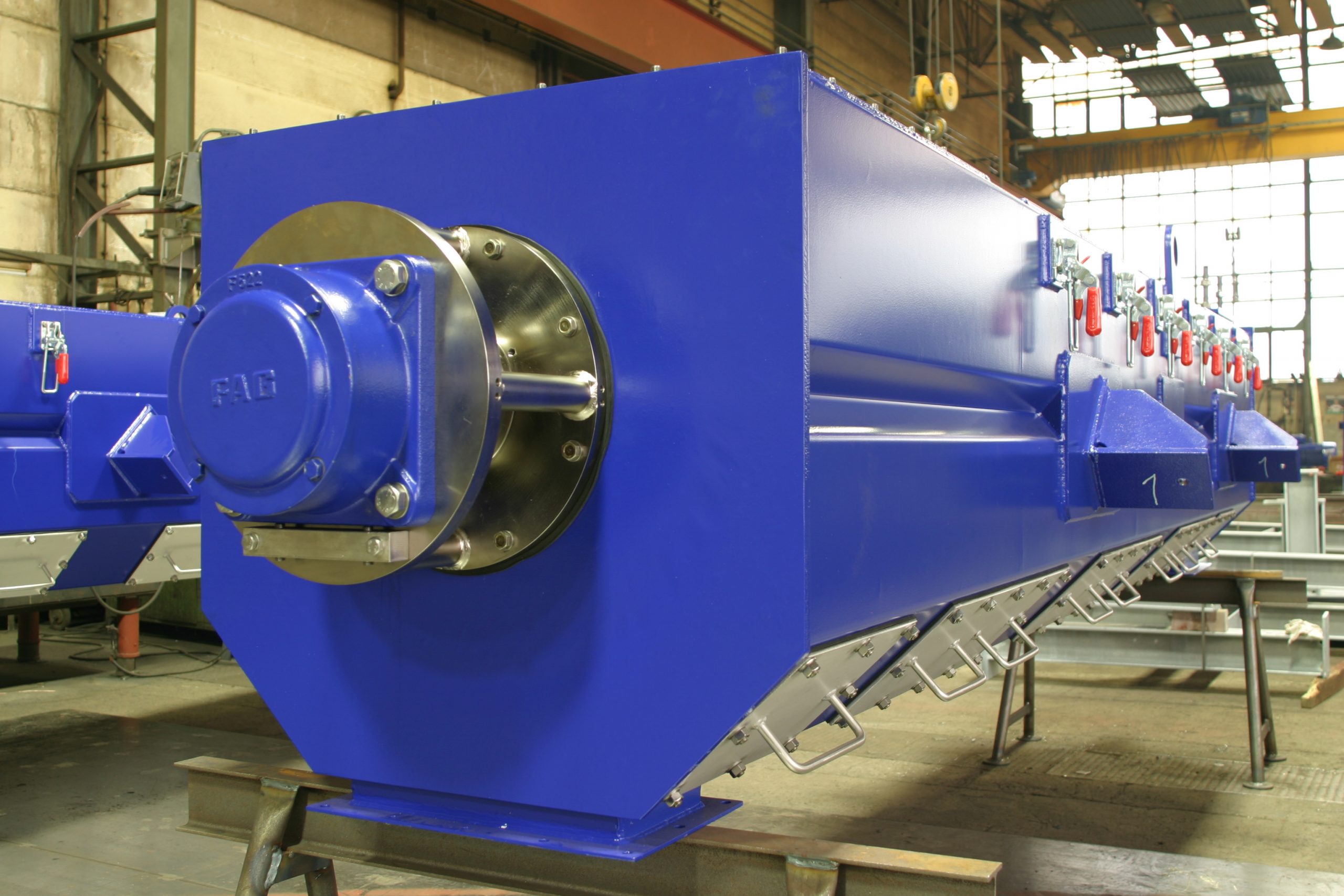

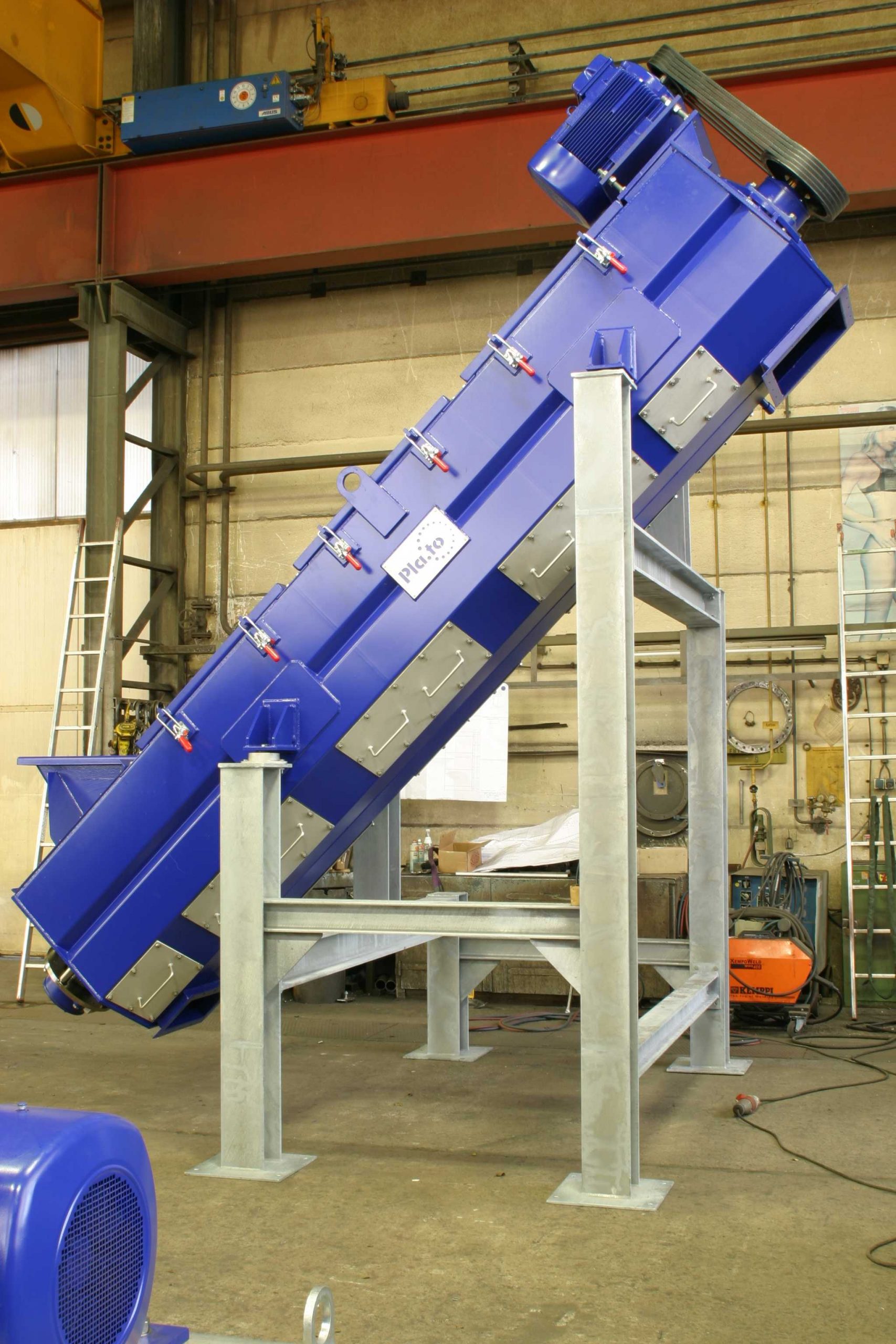

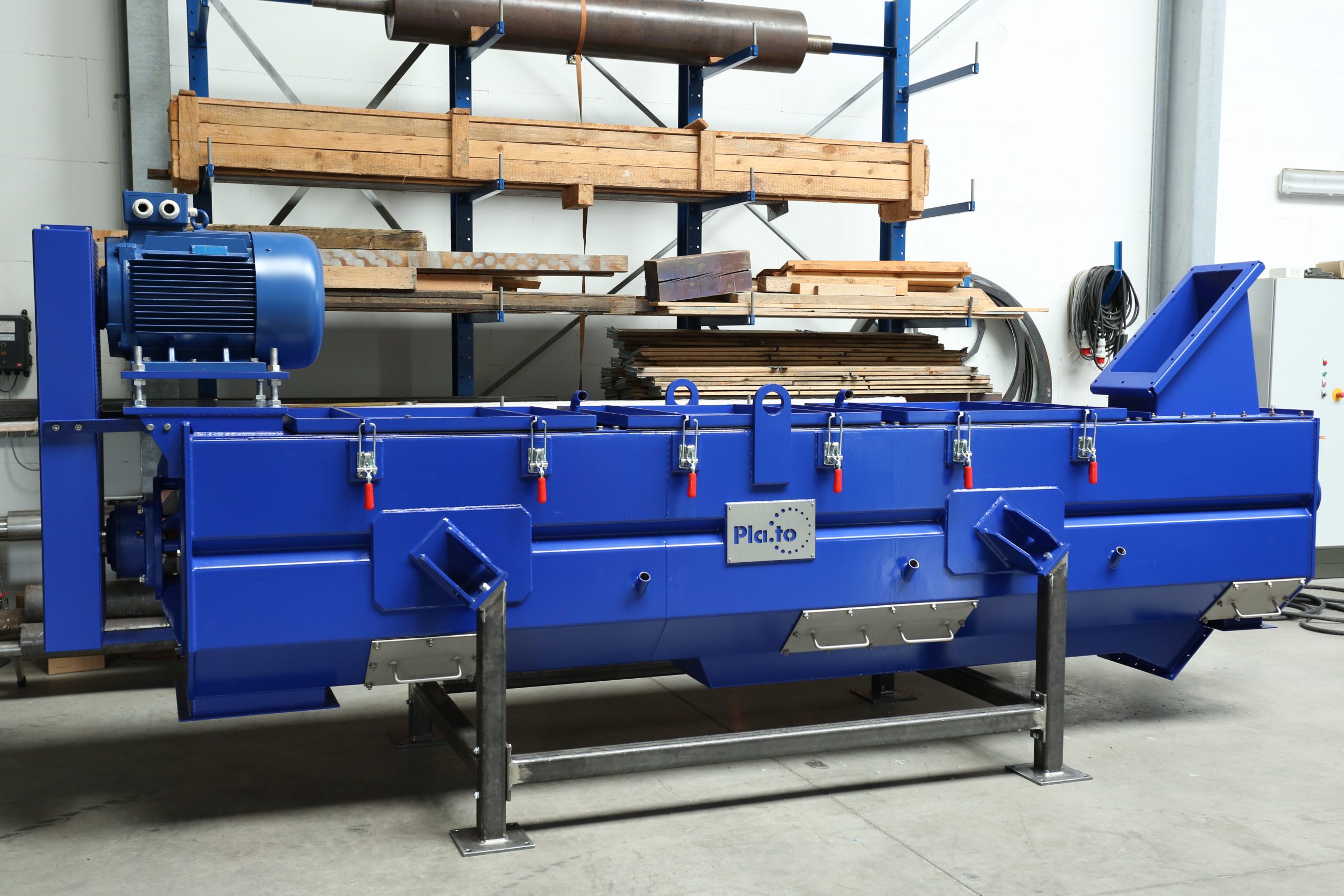

In the first cleaning phase, the friction washer washes the plastic waste by means of a large amount of water that circulates continuously in the circuit. After the friction washer, the dirt is well soaked and can be finally removed in the second stage.

In the intensive washer, the pre-washed plastic is thoroughly cleaned. The strong frictional forces between the screen basket and the rotor tools remove the dirt in the centrifuge. New water is no longer added. In addition to cleaning, the plastic is dewatered. Even stubborn impurities are removed by the great forces.


Our sizes

More power for more efficient washing

We offer different models depending on throughput.
The achievable throughput depends on the grain size and material thickness.

FW37-60
SD90-90
FW55-70
SD132-130
FW75-80
SD200-140
FW90 -10 0
SD250-180
Hard plastics with grain size < 10 mm [kg/h]
2.000 – 2.500
2.000 – 2.500
4.000 – 5.000
4.000 – 5.000
5.000 – 6.000
5.000 – 6.000
6.000 – 8.000
6.000 – 8.000
LDPE Slides > 20 μm Grain size > 40 mm [kg/h]
500 – 700
500 – 700
700 – 1.200
700 – 1.200
1.20 0 – 1.80 0
1.20 0 – 1.80 0
2.000 – 2.500
2.000 – 2.500
Main drive [kW]
30
55-75
45
90-110
75
132-160
90
200-250
Automatic cleaning [kW]
-
0,55
-
0,75
-
0,75
-
0,75
Basket diameter approx. [mm
600
900
700
1.300
800
1.400
1.00
1.800
Hard plastics with grain size < 10 mm [kg/h]
LDPE Slides > 20 μm Grain size > 40 mm [kg/h]
Main drive [kW]
Automatic cleaning [kW]
Basket diameter approx. [mm
FW37-60
2.000 – 2.500
500 – 700
30
-
600
SD90-90
2.000 – 2.500
500 – 700
55-75
0,55
900
FW55-70
4.000 – 5.000
700 – 1.200
45
-
700
SD132-130
4.000 – 5.000
700 – 1.200
90-110
0,75
1.300
FW75-80
5.000 – 6.000
1.20 0 – 1.80 0
75
-
800
SD200-140
5.000 – 6.000
1.20 0 – 1.80 0
132-160
0,75
1.400
FW90 -10 0
6.000 – 8.000
2.000 – 2.500
90
-
1.00
SD250-180
6.000 – 8.000
2.000 – 2.500
200-250
0,75
1.800
