Dry cleaning

Cleaning without water

Dry cleaning is a particularly environmentally friendly method of cleaning used plastics. Without the use of fresh water, dirt such as paper labels and food residues are defibered by high acceleration and impact forces. While the cleaned plastic is sucked out of the process, the centrifuged residues leave the cleaner in a separate stream. The process works continuously and allows high throughputs.

The continuous process with high throughputs is applicable to all thermoplastics such as LDPE, HDPE, PP, PET, PA, HIPS and many more

Pla.to
dry cleaning

Improved cleaning through new design

With the wastewater-free cleaning technology of Pla.to GmbH the recycling of plastics becomes easier and more economical. By large mechanical forces and air currents, paper is shredded into small fibers and surface dirt is thrown off the plastic by friction.

A rotor equipped with hardened plates rotates in the centrifuge. The rotor is enclosed by a perforated screen basket through which the loosened dirt passes. A strong vacuum sucks fibers and dirt out of the machine.

Another special feature of the Pla.to dry cleaners is the wear-resistant design of the interior of the machine made of hardened steel. The plates on the rotor can be replaced after loosening the screw connections.

An integrated fan increases the throughput and prevents blockages. The centrifuge is equipped with a cleaning system. With its help, separated dirt and fibers are forced out of the machine. This allows uninterrupted continuous operation over very long periods of time.


Our sizes

More power, more performance, more efficient washing Cleaning

We offer different models depending on your needs and material.
The achievable throughput depends on the grain size and material thickness.

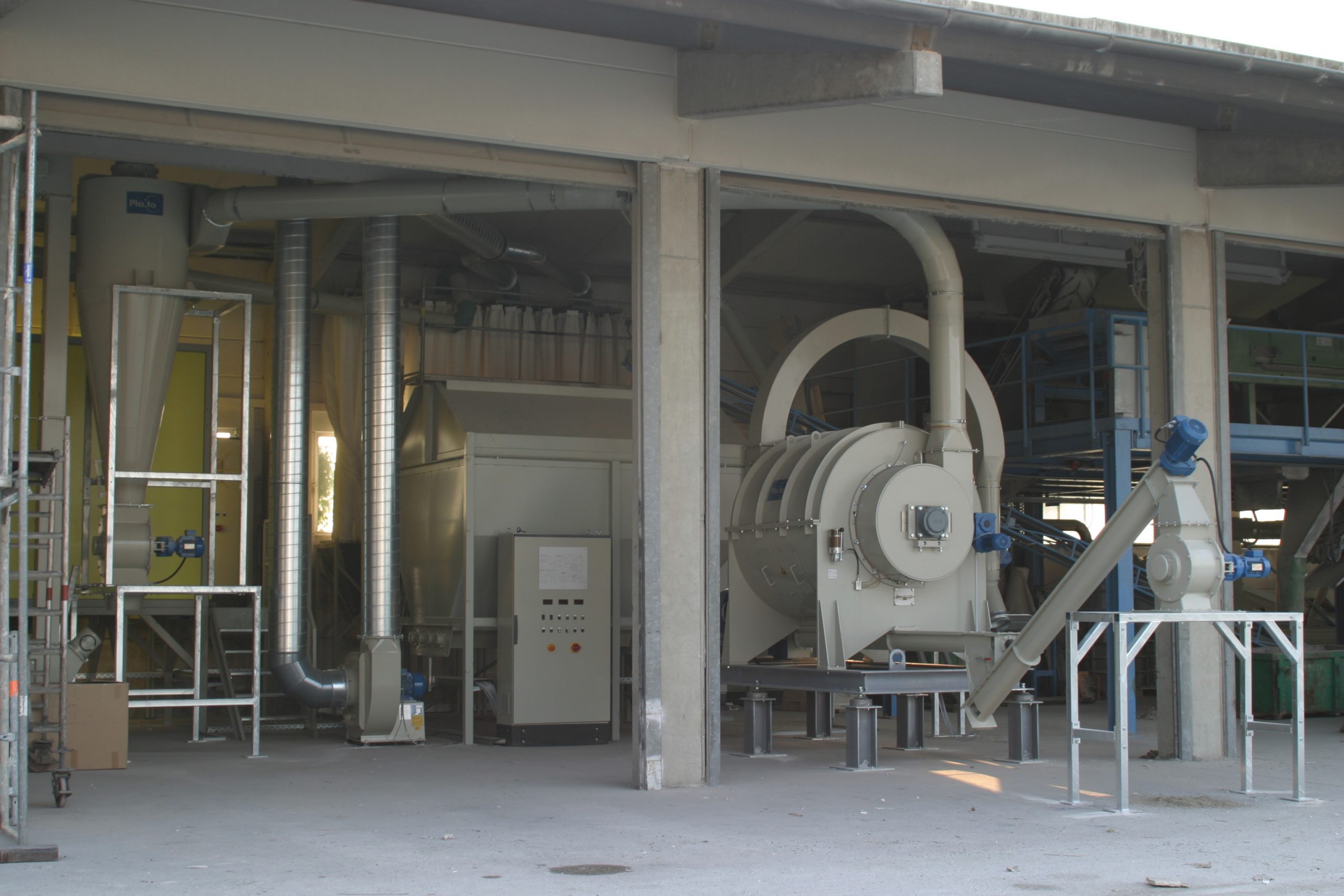

MR90-90

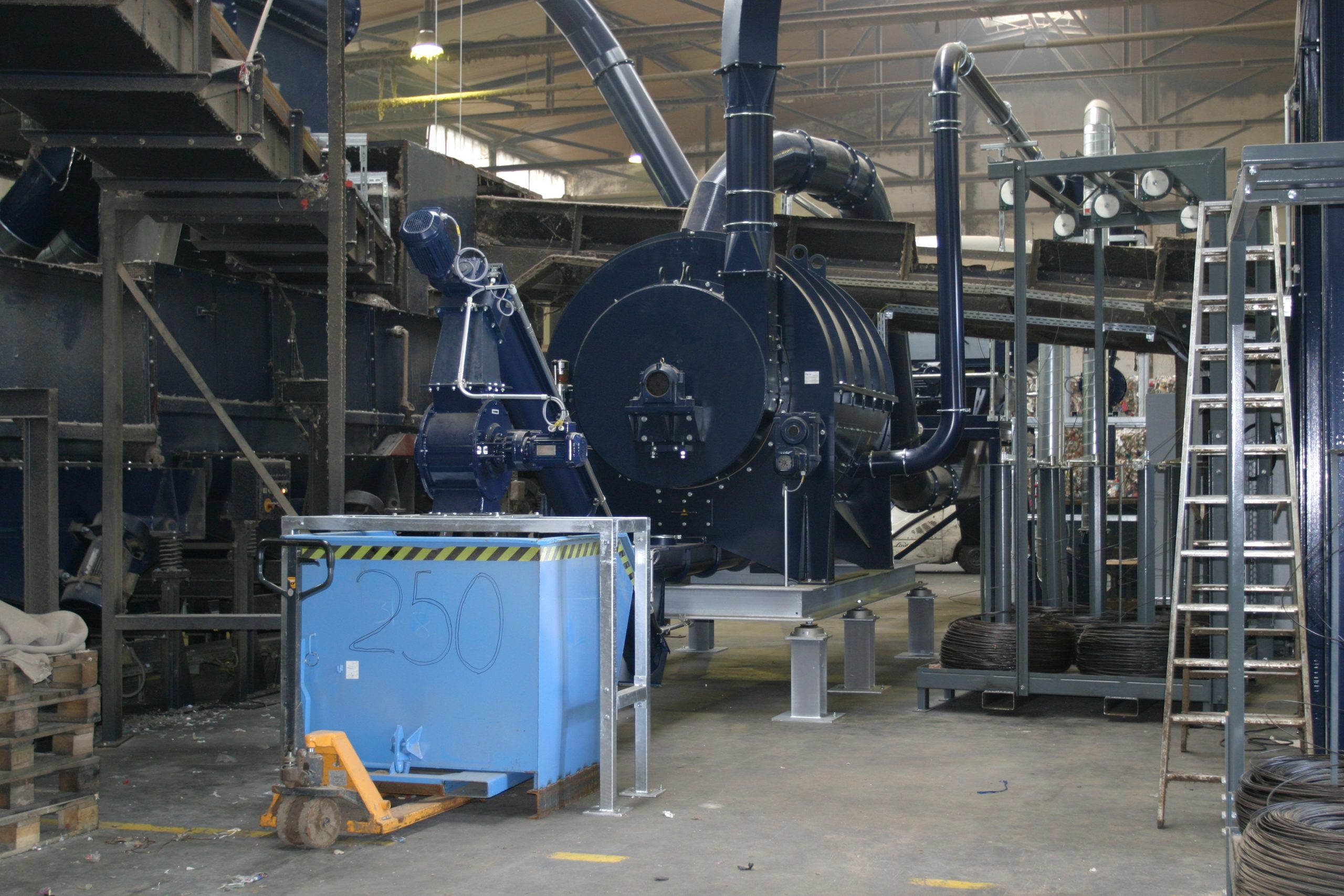

MR132-130

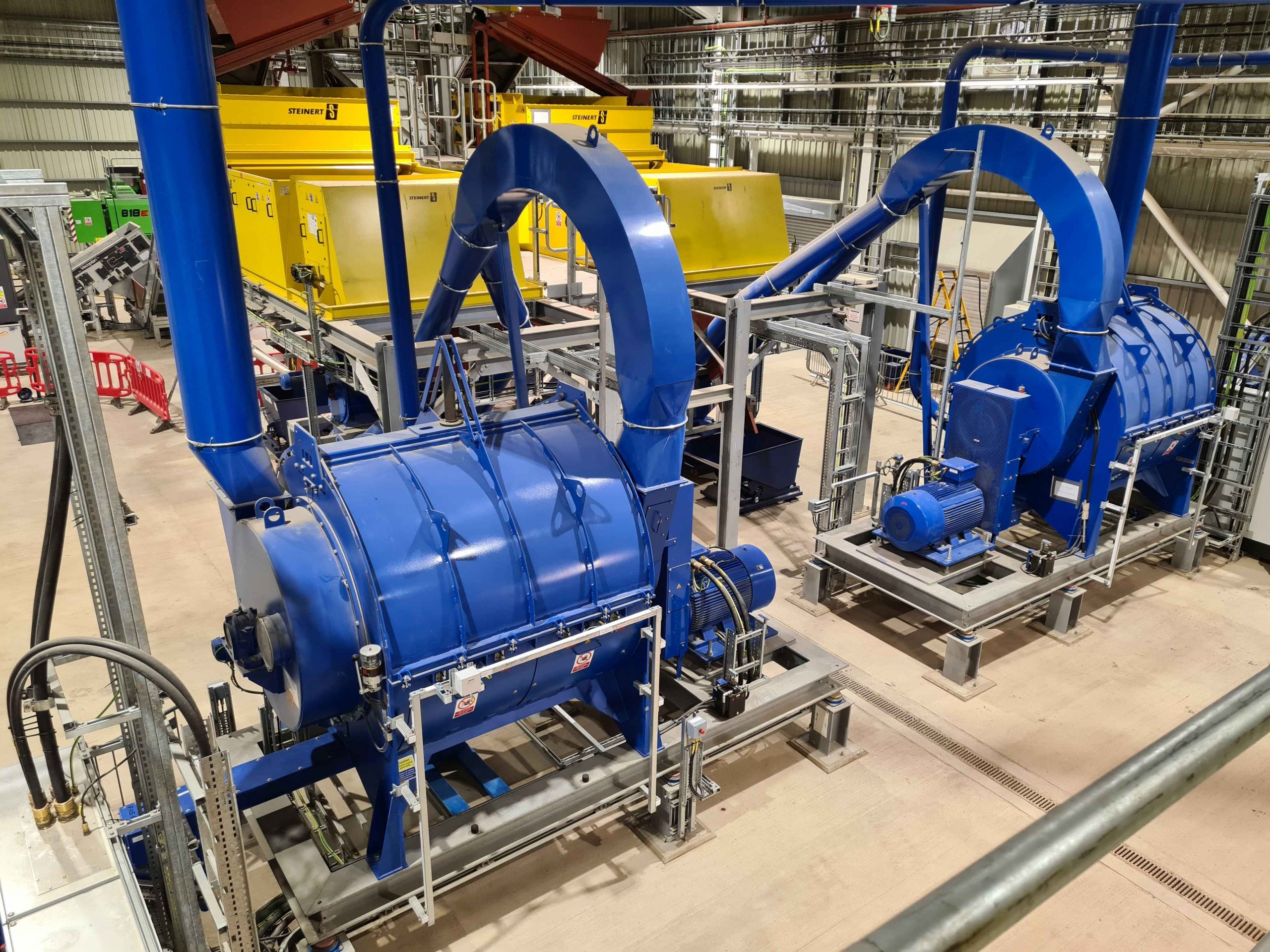

MR200-140

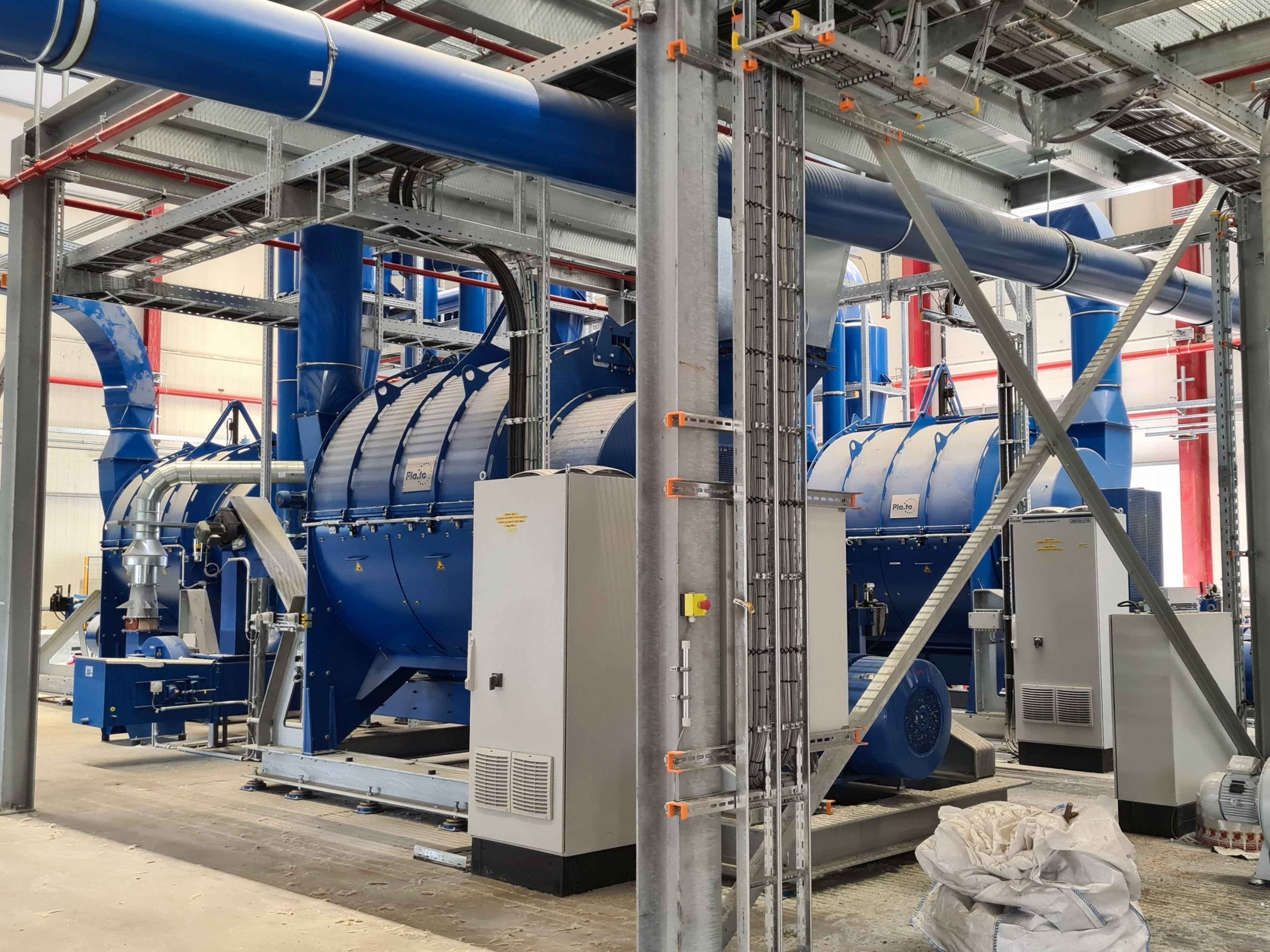

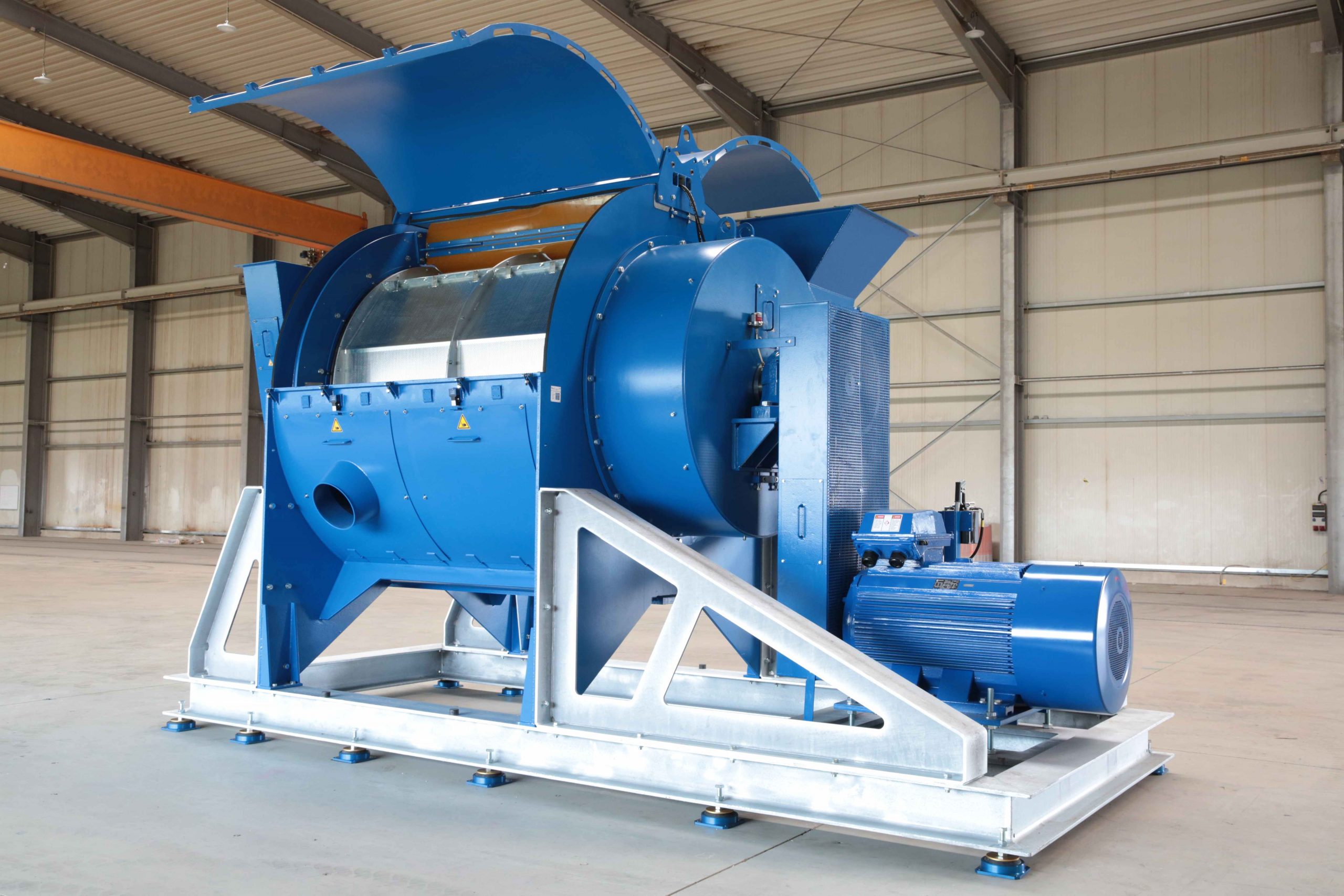

MR250-180
Hard plastics with grain size 10 mm [kg/h]
2.000-2.500
4.000-5.000
5.000-6.000
6.000-8.000
LDPE slides > 20 um Grain size 40 mm [kg/h]
500-700
700-1.200
1.200-1.800
2.000-2.500
Main drive [kw]
55 - 75
90-110
132-160
200-250
Automatic cleaning [kw]
0,55
0,75
0,75
0,75
Basket diameter approx. [mm]
900
1.300
1.400
1.800
Hard plastics with grain size 10 mm [kg/h]
LDPE slides > 20 um Grain size 40 mm [kg/h]
Main drive [kw]
Automatic cleaning [kw]
Basket diameter approx. [mm]
MR90-90
2.000-2.500
500-700
55 - 75
0,55
900
MR132-130
4.000-5.000
700-1.200
90-110
0,75
1.300
MR200-140
5.000-6.000
1.200-1.800
132-160
0,75
1.400
MR250-180
6.000-8.000
2.000-2.500
200-250
0,75
1.800
